Galvanized Hexagonal Gabion

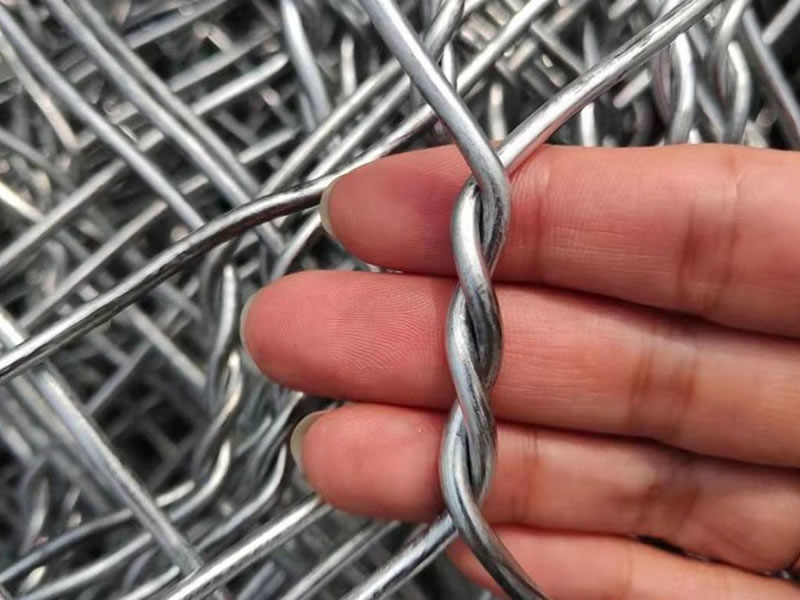

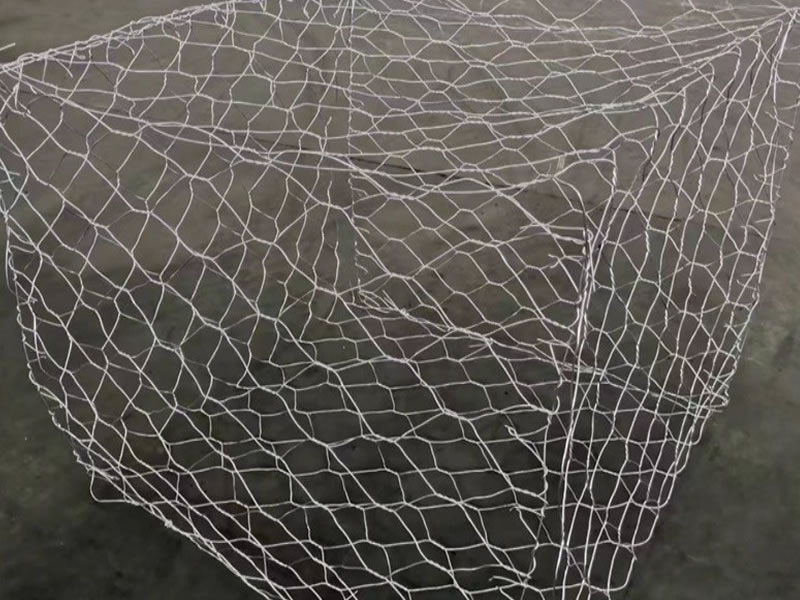

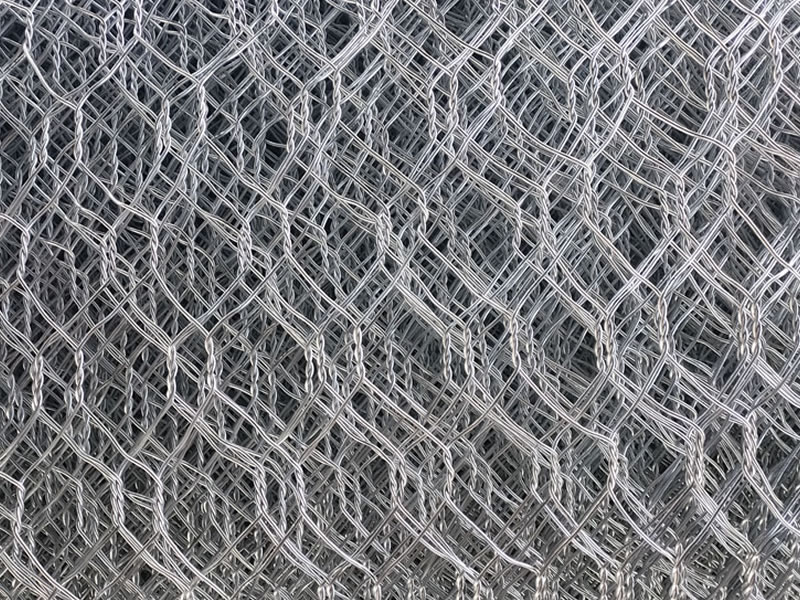

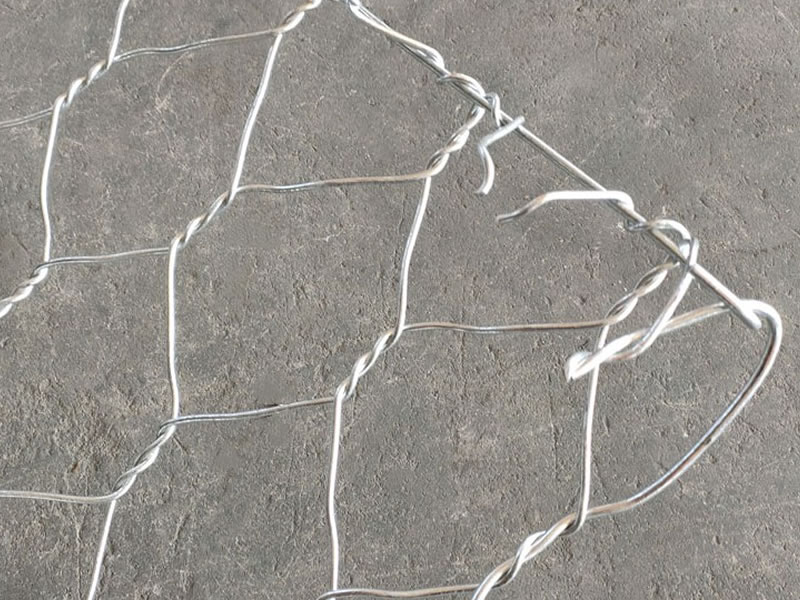

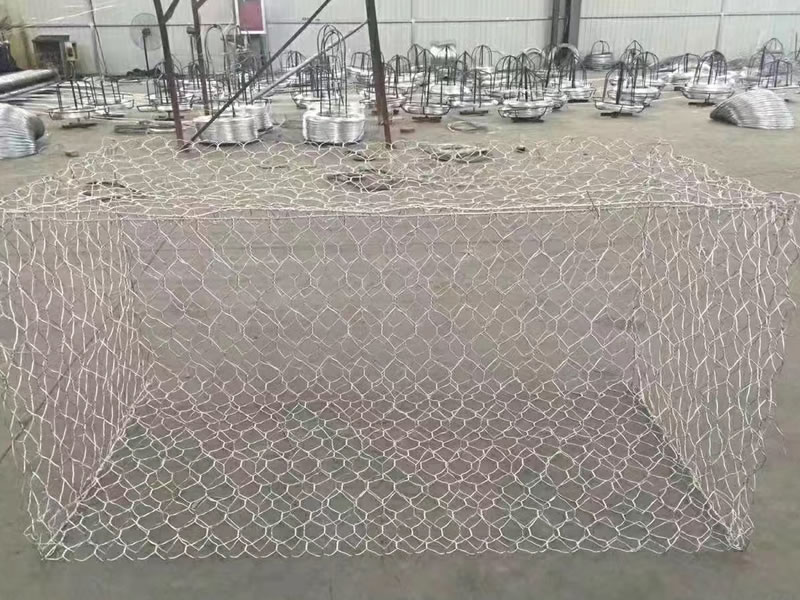

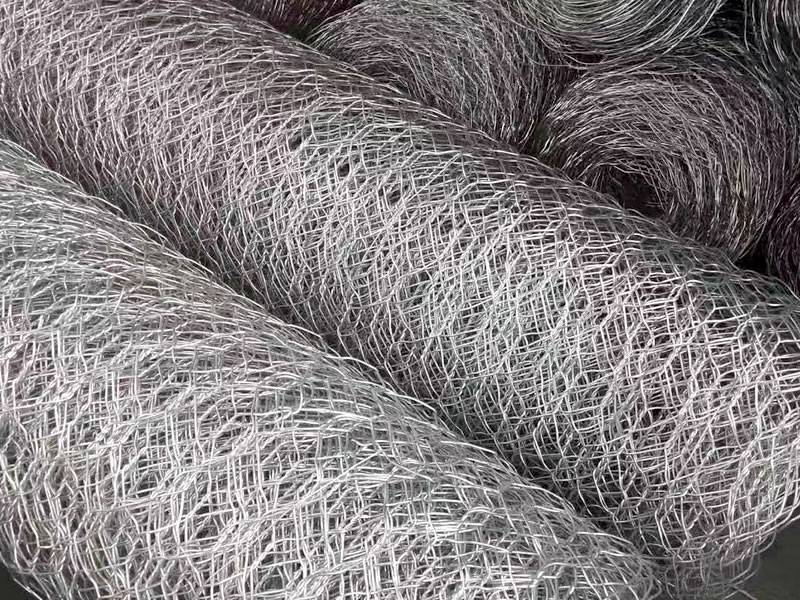

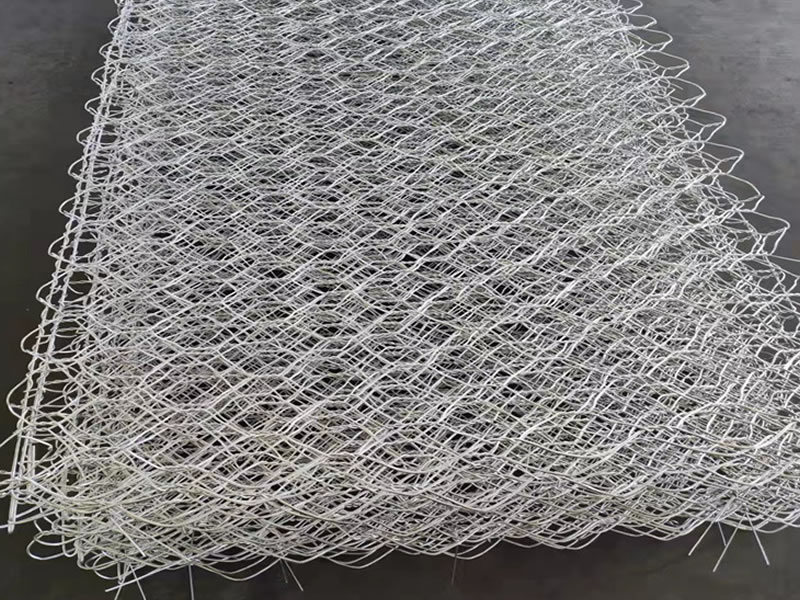

Gabions are double twisted hexagonal woven galvanized steel wire mesh compartmented baskets with a rectangular box shape.

The cells are filled with natural stone and the diaphragms minimize stone migration within the basket.

1. Zinc coating: 40-280g/m2.
2. Galfan wire: also called aluminum-zinc coated wire (10% Al)zinc weight can be from 200g-500g/m2.

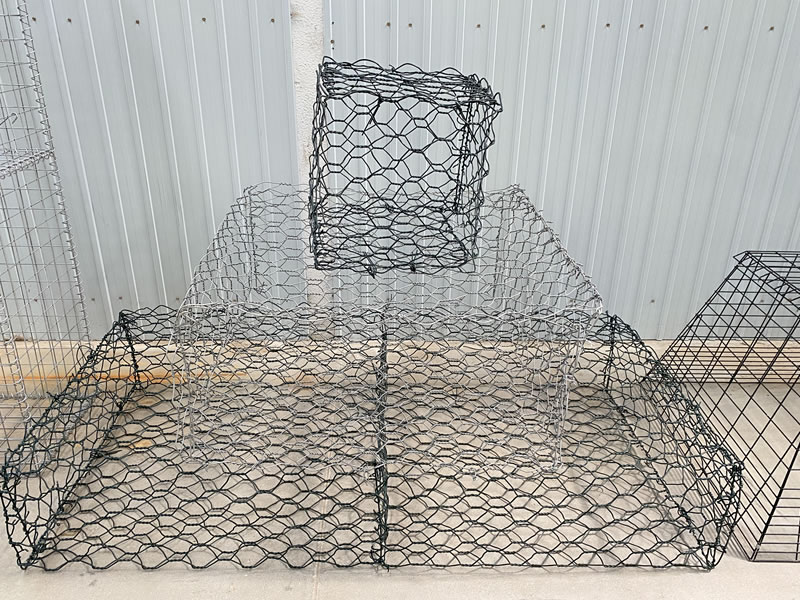

3. PVC coated wire:The inner wire is galvanized wire or galfan wire, color is gray or green.

Specification

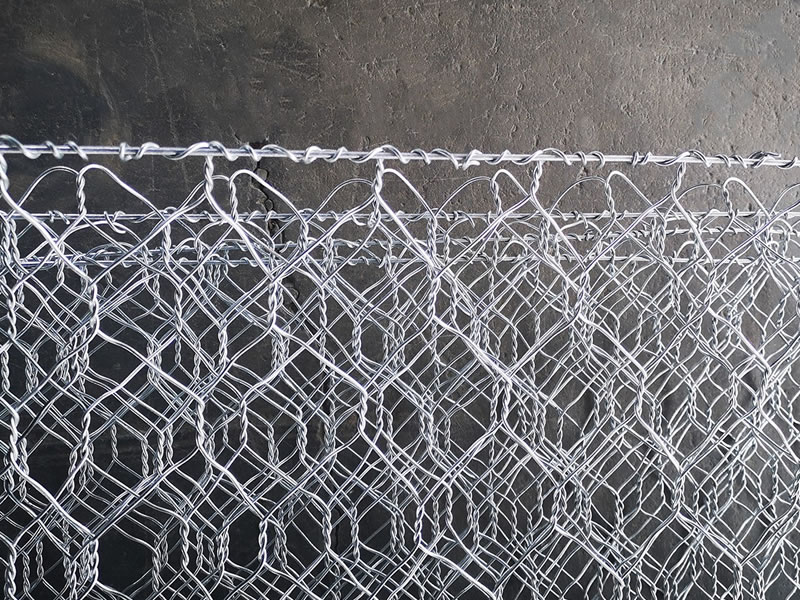

Surface treatment	Mesh wire (mm)	Selvedge wire (mm)	Lacing wire (mm)
Galvanized /Galfan gabion	2.4	3.0	2.2
	2.7	3.4	2.2
	3.0	3.9	2.2
PVC coated gabion	2.4/3.4	3.0/4.0	2.2/3.2
	2.7/3.7	3.4/4.4	2.2/3.2
	3.0/4.0	3.9/4.9	2.2/3.2

Wire diameter (mm)	Zinc coating (g/㎡)	Mesh size	Basket Size
2.2	230	60x80mm 80x100mm 100x120mm, etc	1 x 1 x 1m 2 x 1 x 1m 4 x 1 x 1m 2 x 1 x 0.5m 4 x 1 x 0.5m 1.5 x 1 x 1m 3 x 1 x 1m 2 x 0.5 x 0.5m 3 x 1 x 0.5m 6 x 2 x 0.5m
2.7	245
3.0	255
3.4	265
3.9	275
*Other sizes can be customized.*

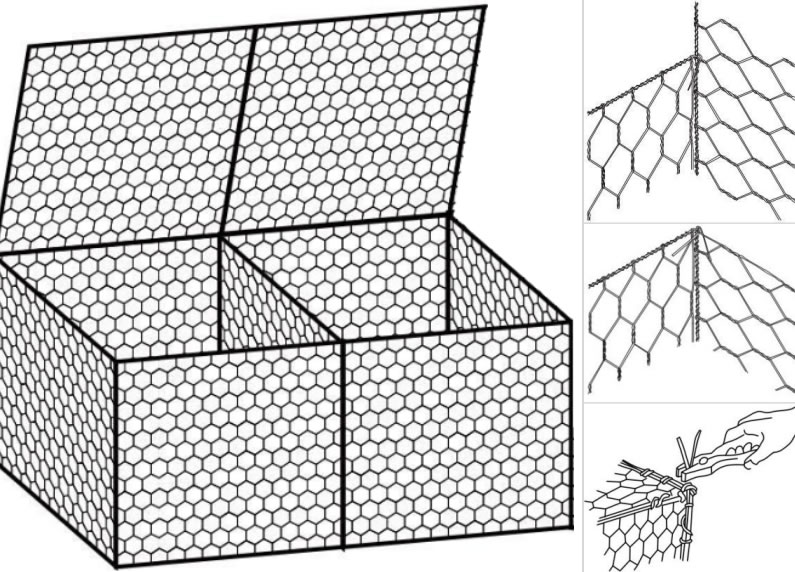

Installation Instructions

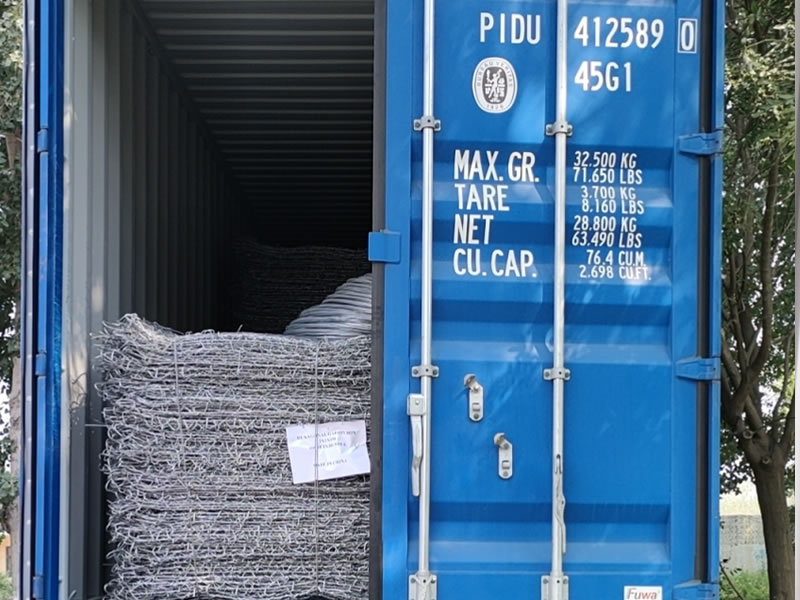

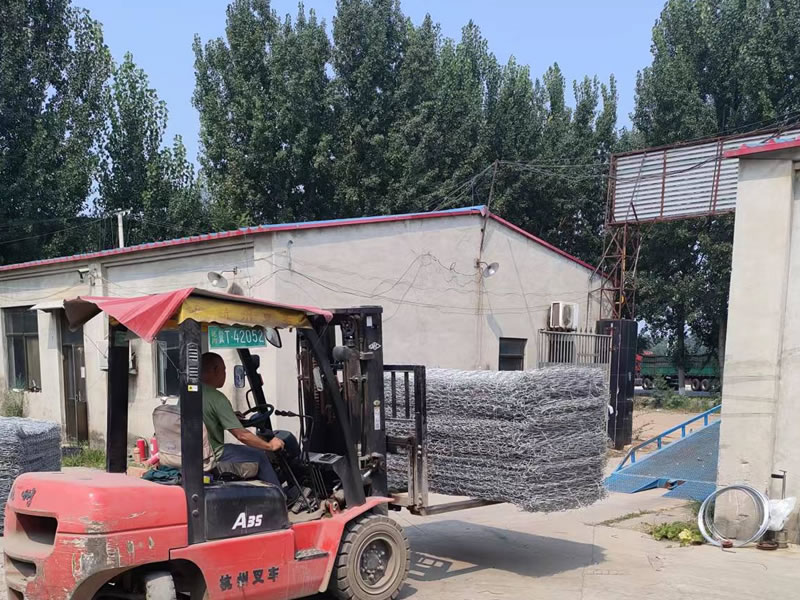

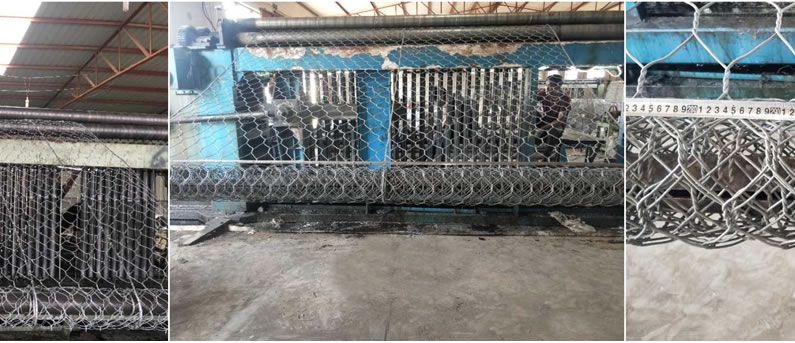

Workshop & Warehouse

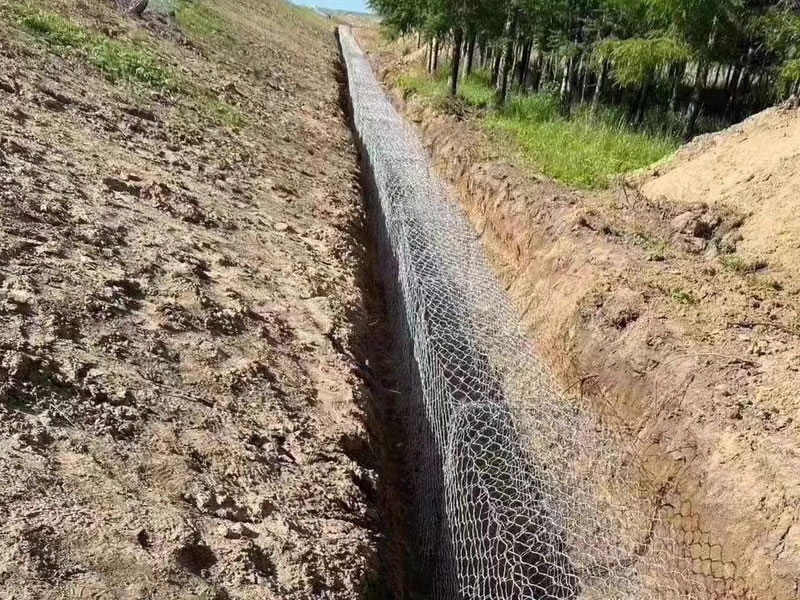

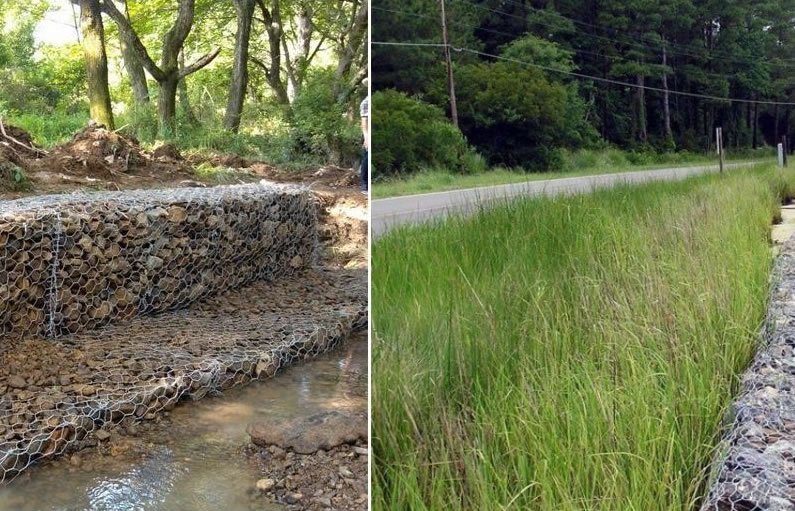

Applications

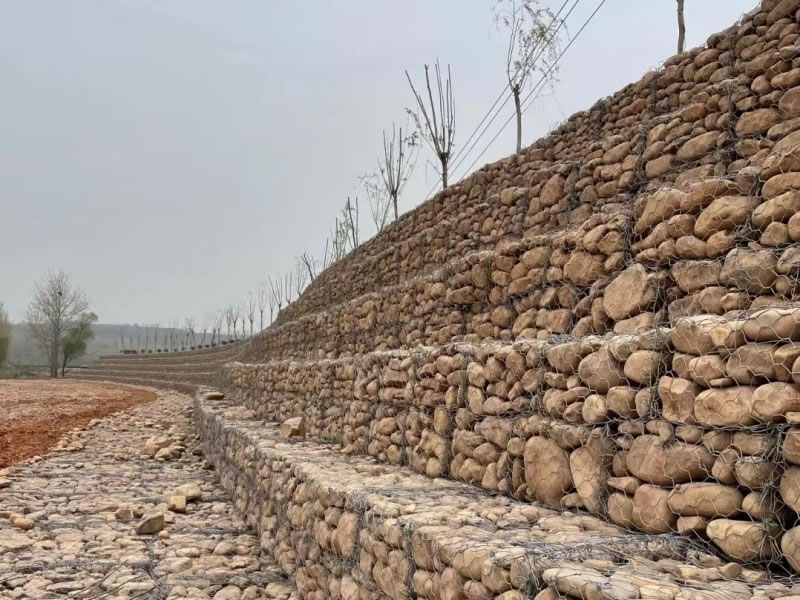

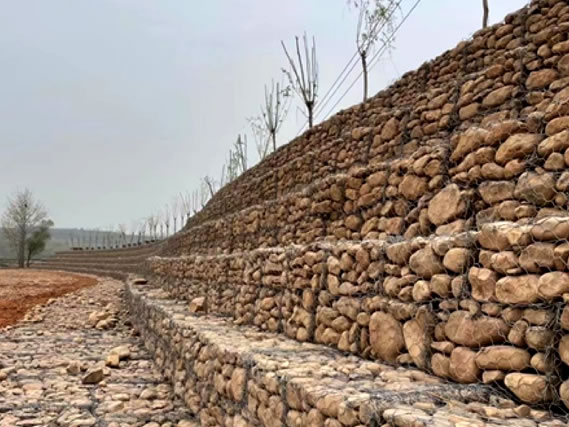

* Gabion Wall is used for retaining walls.
* The gabion retaining wall is used for canal twining and River.
* Gabion basket wall is protecting the roadway and bridge.
* It is used for hydraulic structures, Culverts, and dams.
* It is used for coastal embankment works.
* Gabion basket wall is protecting the rockfall and soil erosion protection.
* It is used for the cladding of walls and buildings.
* Gabion retaining wall is used for walls, noise, and environmental barriers.
