PVC Coated Hexagonal Gabion
PVC Coated Gabion box is made of PVC coated wire, the mesh shape is hexagonal. The gabion boxes are widely used in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.
Gabion boxes can be supplied in various lengths, widths and heights. In order to strengthen the boxes, all the edges of the structure shall be selvaged with wire of bigger diameter.
Specification
| Hexagonal Wire Netting Gabions | ||||
| Opening (mm) | Body wire (mm) | Edge wire (mm) | Lacing wire (mm) | Max. width |
| 60X80 | 2.0-2.8 | 3.0-4.0 | 2.0-2.2 | 4M |
| 80X100 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
| 80X120 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
| 100X120 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
| 100X150 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
| 120X150 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
| Gabion sizes | |||||
| Length (m) | Width (m) | Height (m) | Diaphragm | Volume (m2) | Tolerance |
| 2.0 | 1.0 | 0.15-0.3 | 1 | 0.3-0.6 | Length:+/-3% Width:+/-5% Height:+/-5% |
| 3.0 | 1.0 | 0.15-0.3 | 2 | 0.45-0.9 | |
| 4.0 | 1.0 | 0.15-0.3 | 3 | 0.6-1.2 | |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |
| 1.5 | 1.0 | 1.0 | 0 | 1.5 | |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 | |

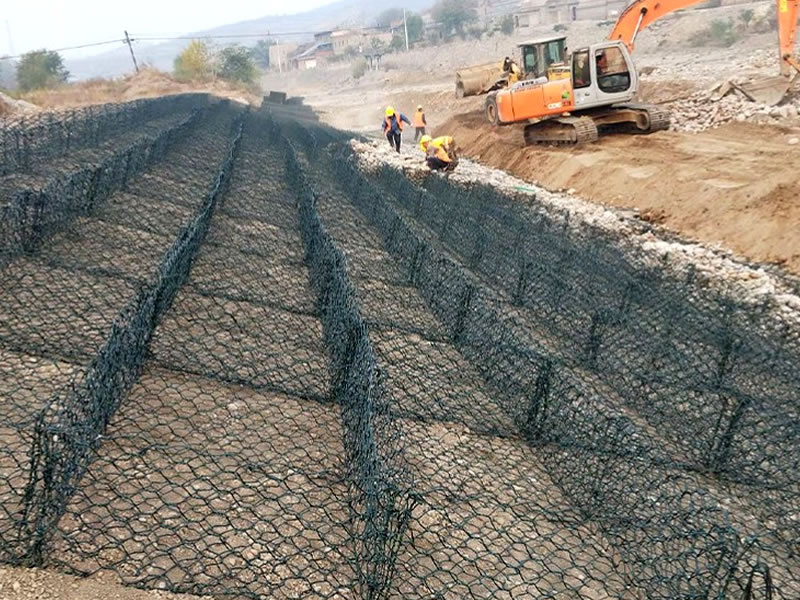

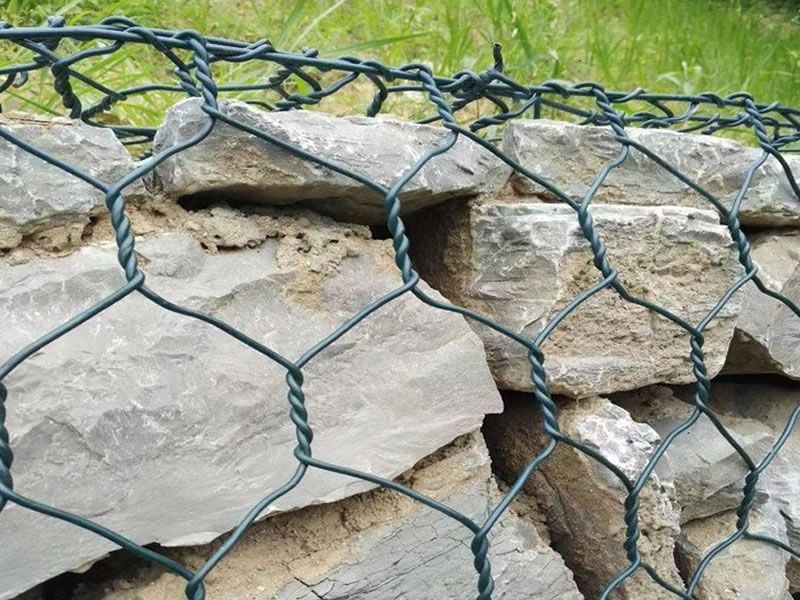

Applications

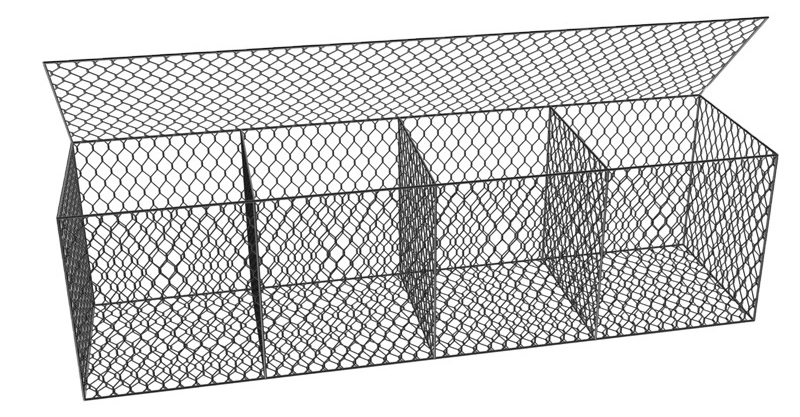

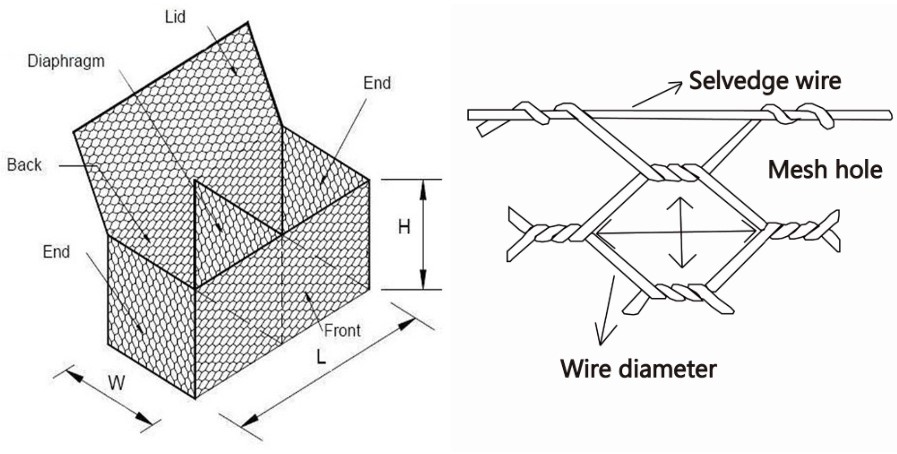

Drawing

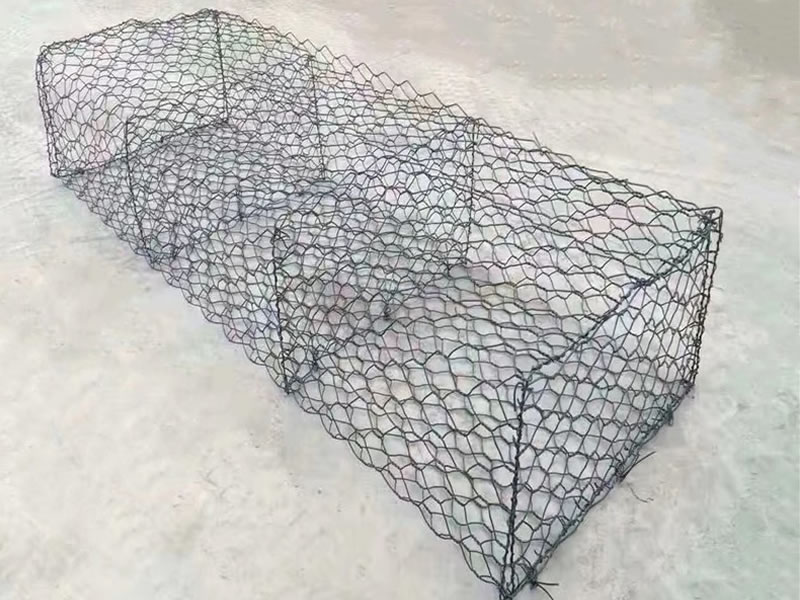

Product Photo

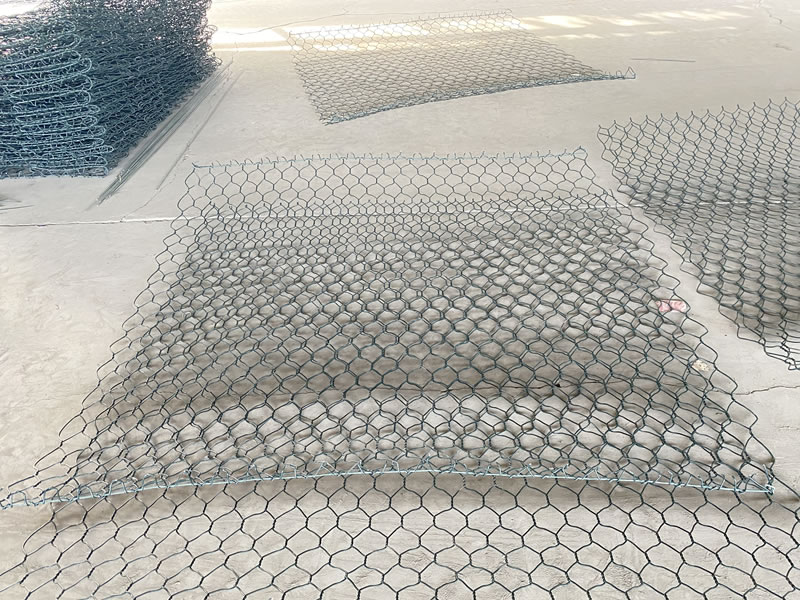

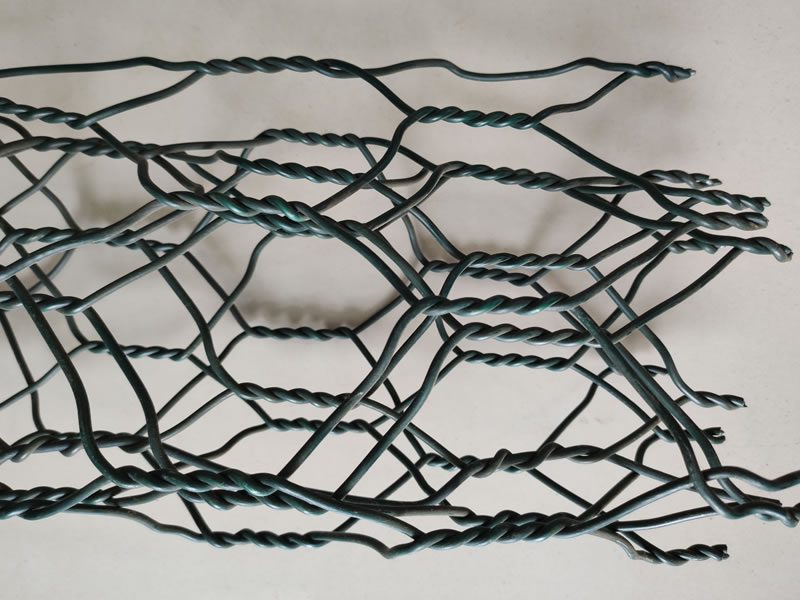

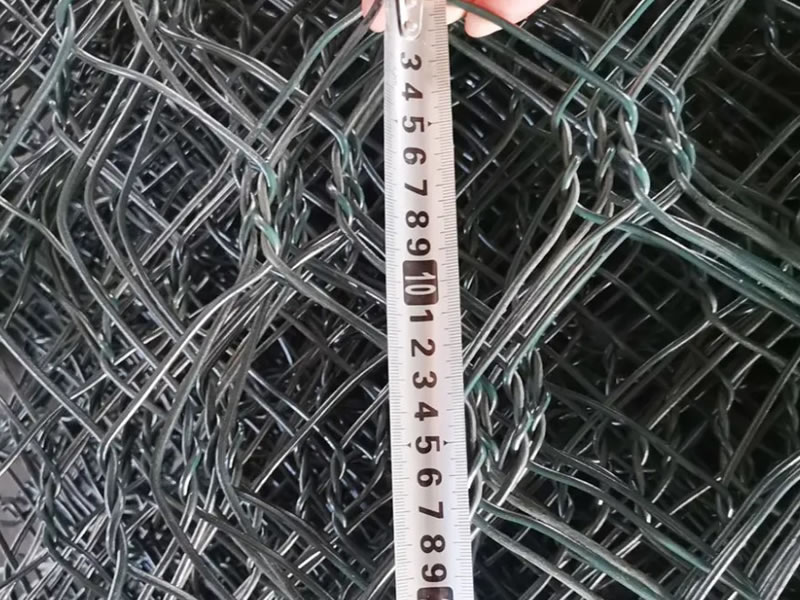

PVC Coated Hexagonal Gabion
PVC Coated Hexagonal Gabion
PVC Coated Hexagonal Gabion
PVC Coated Hexagonal Gabion
PVC Coated Hexagonal Gabion Box

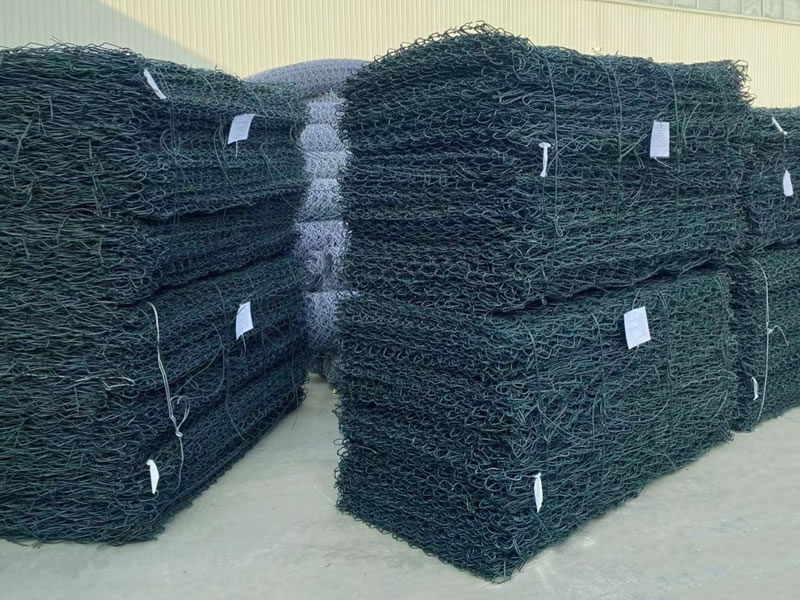

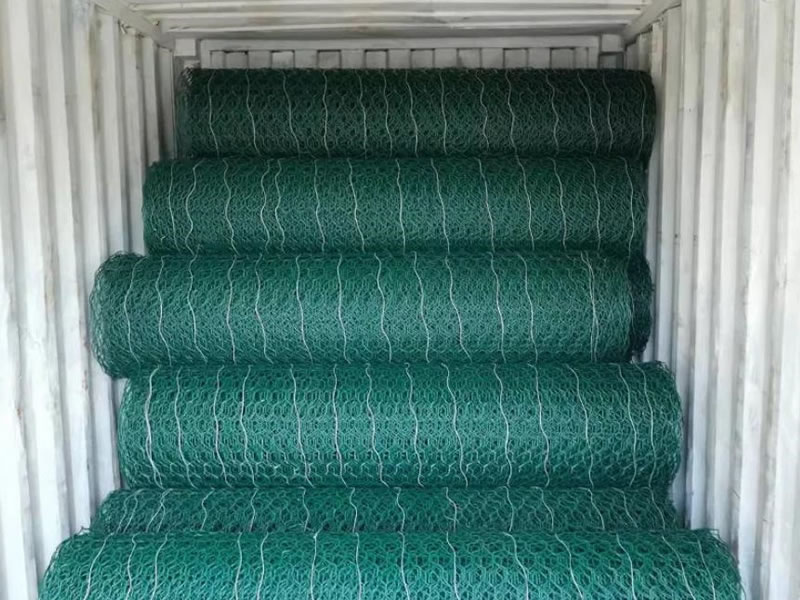

Hexagonal Wire Netting Packing
