Welded Gabion

Welded Gabion Baskets are made of welded wire nets and filled with stones. Welded gabion nets are made of thicker wires so that the mesh is strong enough and tear-resistant. The wire is covered by zinc or galfan which protects it from the effects of the weather for a long time.

They are used as sediment barrier, soil stabilization, bank and embankment protection.

Wire thickness: 3.0mm - 6.0mm.

Surface Treatment: hot-dipped galvanizing, galvanizing, Galfan, or PVC coating.

Specifications

Some popular sizes of welded gaion

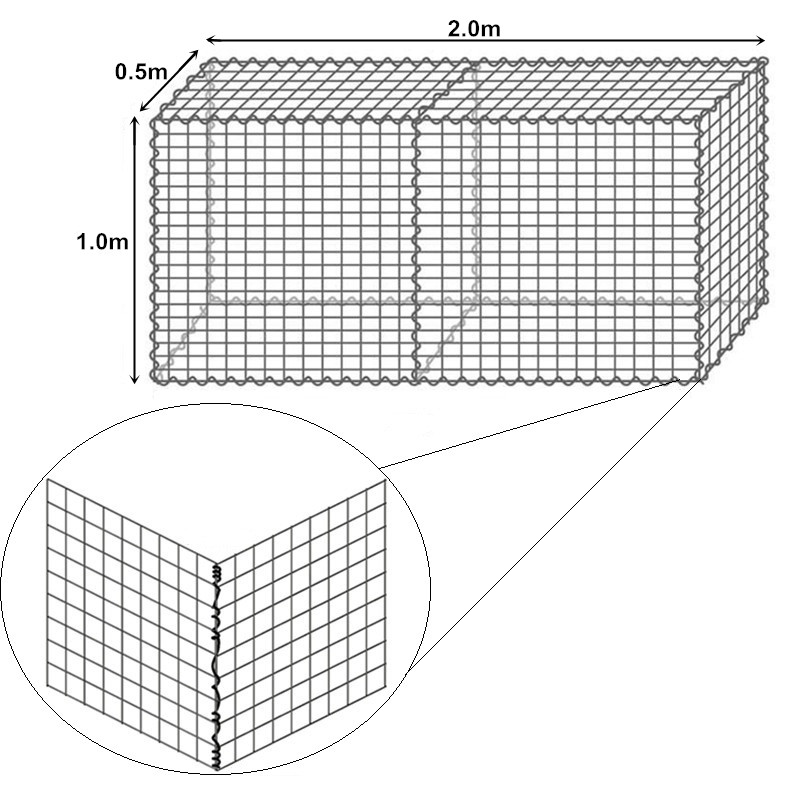

Box sizes (m)	Mesh size (mm)	No. of diaphragms	Capacity per box (m3)
1.0x1.0x0.5	50x50	0	0.5
1.0x1.0x1.0	50x50	0	1
1.5x1.0x0.5	75x75	0	0.75
1.5x1.0x1.0	75x75	0	1.5
2.0x1.0x0.5	50x100	1	1
2.0x1.0x1.0	50x100	1	2
3.0x1.0x0.5	100x100	2	1.5
3.0x1.0x1.0		2	3
4.0x1.0x0.5		3	2
4.0x1.0x1.0		3	4
Note: Other sizes can be customized.

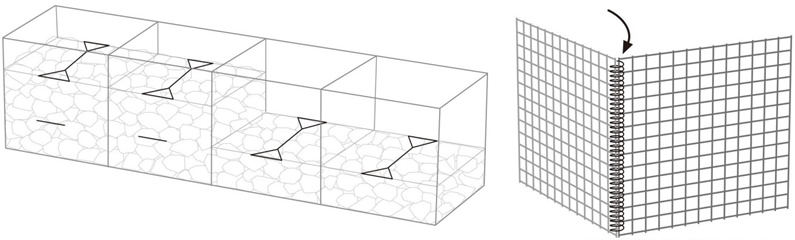

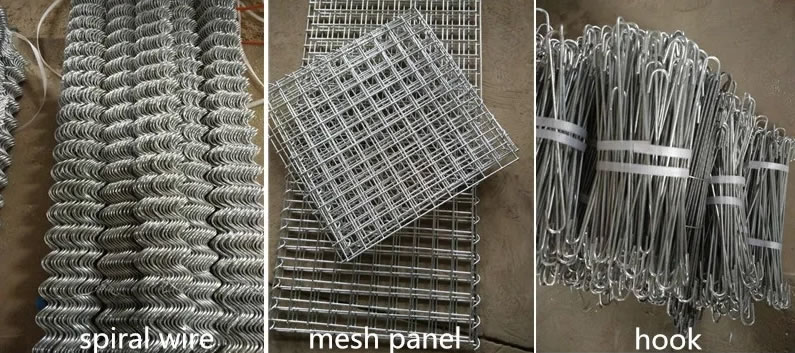

Installation Instructions

Step 1. Place ends, diaphragms, front and back panels uprightly on the bottom of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
Step 4. Fill the gabion box with stones.
Step 5. Close the lid and secure with spiral stiffeners at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with stones.

Applications

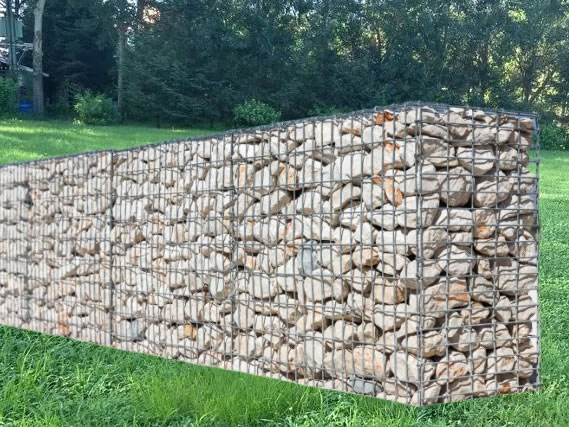

* Gabion Retaining wall
* Landscaping designs for public areas and private gardens
* Rock fall protection
* Flood control & canal training
* River and stream banks
* Embankments and bridge abutments
